    square-540x540-ECOSYS-PA-5500X

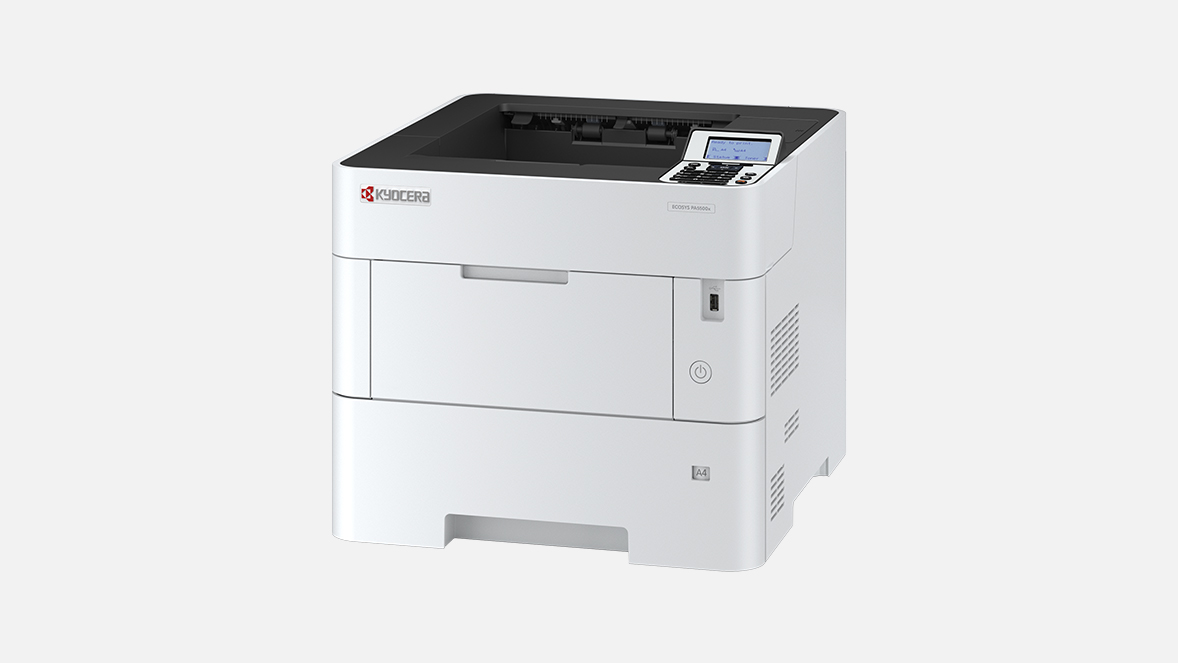

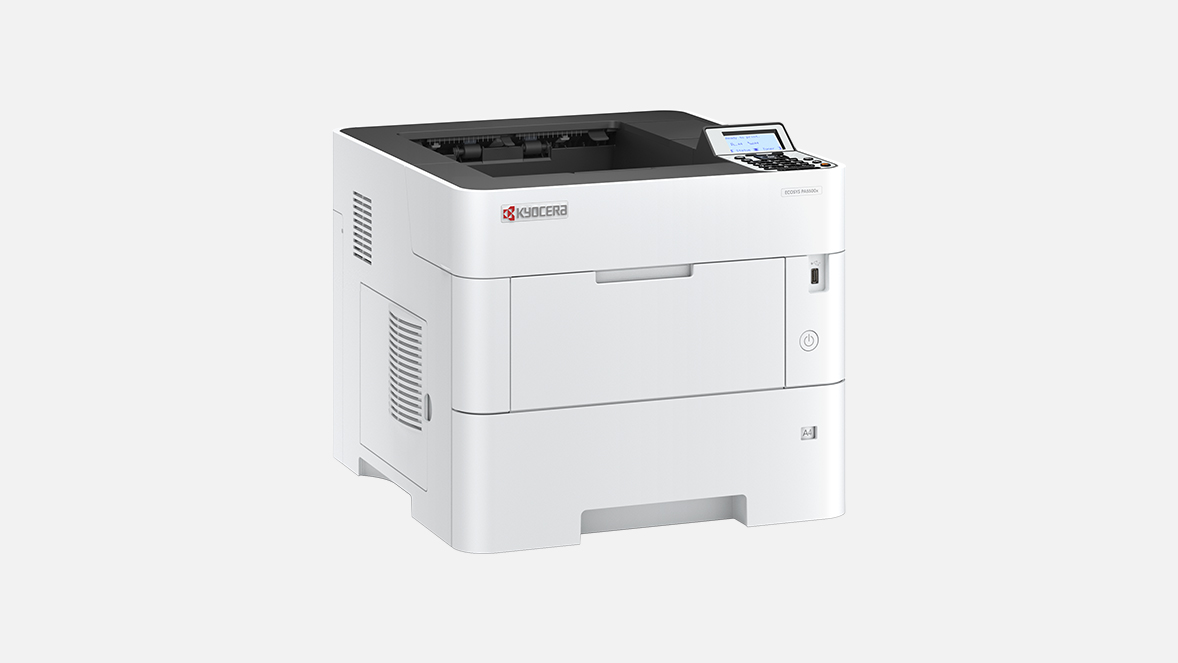

    ECOSYS PA5500x

    A versatile and robust monochrome printer that will steer your organization towards optimum productivity. With a speed of 57 pages per minute and advanced security features, your business can operate efficiently with the peace of mind that your documents are secure.

    • Handles up to 2,600 Sheets
    • Time to first print of 4.5 seconds
    • Durable machine built with long-life components
    • Mobile printing compatibilities
    • High resolution printing (1200 x 1200 dpi)
    Engine speed

    57 ppm b&w

    Resolution

    600 x 600 dpi, Up To Fine 1200 dpi

    Dimensions (W x D x H)

    15.4" x 16.4" x 13.5"

    Time to first print

    4.5 sec. b&w

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • Printing solutions to make a business run smoothly

      Printing solutions to make a business run smoothly

      Highly regarded by the industry and highly rated by numerous testing organizations, Kyocera’s complete portfolio of reliable, high-value, eco-friendly network laser printers, deliver high resolution output with crisp black and white or vibrant color prints, whether they are text or graphics, for any size workgroup.

      Printing solutions to make a business run smoothly
      Printing solutions to make a business run smoothly

      With the introduction of a Kyocera printer, printing can become reliable, quick, and low cost.

    • Powerful, reliable, and economical

      Powerful, reliable, and economical

      Whether on your desktop or on the floor of your office – be it in color or black and white, with Kyocera, you always achieve the best possible print quality while easily controlling your output costs. Kyocera devices and their components have been designed to be extremely reliable and highly economical.

      Powerful, reliable, and economical
      Powerful, reliable, and economical

      For a printer that can be trusted to produce the goods whenever required.

    • ECOSYS: The sustainable solution

      ECOSYS: The sustainable solution

      ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs, and significantly less waste during their lifetime.

      ECOSYS: The sustainable solution
      ECOSYS: The sustainable solution

      Unique to Kyocera, ECOSYS provides long-lasting and environmentally friendly MFPs and printers at an economical cost.

    Resources

    Explore some of the common functions, features and questions via short videos and more.

    • Video Library

      Video Library

      Watch short educational videos that will help walk you through the features and functionalities.

    • Frequently Asked Questions

      Frequently Asked Questions

      Answers to common troubleshooting situations and installation instructions for related software.

    Downloads

    • ECOSYS PA5500x Drivers
    • ECOSYS PA5500x Documentation
    • ECOSYS PA5500x Software

    Main Specifications

    General

    • General

    • Paper Handling

    • Print

    square-540x540-ECOSYS-PA-5500X
    General type
    A4 Printer (up to 8.5" x 14")
    Engine speed
    57 ppm b&w
    Warm-up time
    25 sec. or less
    Power consumption
    Printing: 120V: 345 W; 220 – 240V: 345 W; Ready: 33W, Sleep: 0.9W
    Input capacity
    Single 500 sheet tray, 100 sheet MPT
    Max. input capacity with options

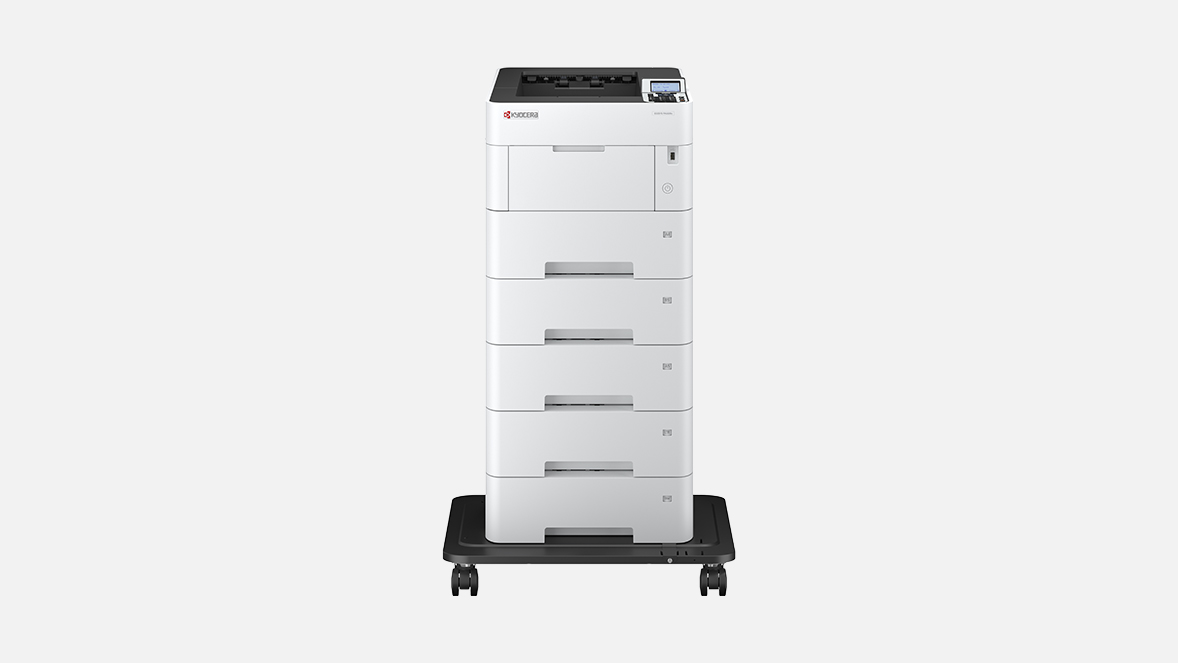

    2,600 sheets
    Duplex unit
    Standard stackless duplex supports statement (5.5" x 8.5") to legal (8.5" x 14"), 16 lb Bond - 90 lb Index (60 - 120gsm)
    Max. output capacity
    Standard output tray 500 Sheets; 250 Sheets, Face Down; 250 Sheets, Face Up
    Processor
    ARM Cortex-A53 Dual core 1.4GHz
    Fonts
    Outline Fonts 93 (PCL 6/KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), Bitmap (1 Font / 79 Processed Outline Fonts)
    Applicable OS
    Windows Server 2012, Windows Server 2012 R2, Windows 8.1, Windows 10; Linux, Apple Macintosh OS X 10.5 or Later

    Options and Consumables

    Paper Handling Options

    • Paper Handling Options

    • Consumables

    • Options

    TK-3432
    Black Toner (Yield: 21K @ ISO 19752)

    CA-3100
    Caster kit

    Card Authentication Kit (B)
    Support for various proximity card readers

    Data Security Kit (E)
    Kit for hard drive encryption and overwrite

    HD-6
    SSD memory device (32 GB)

    HD-7
    SSD memory device (128 GB)

    IB-32B
    IEEE 1284 compliant NIC

    IB-36
    Wireless LAN NIC - 98' range and Wi-Fi Direct support

    IB-36
    Wireless LAN NIC - 98' range and Wi-Fi Direct support

    IB-50
    Gigabit ethernet board for dual NIC

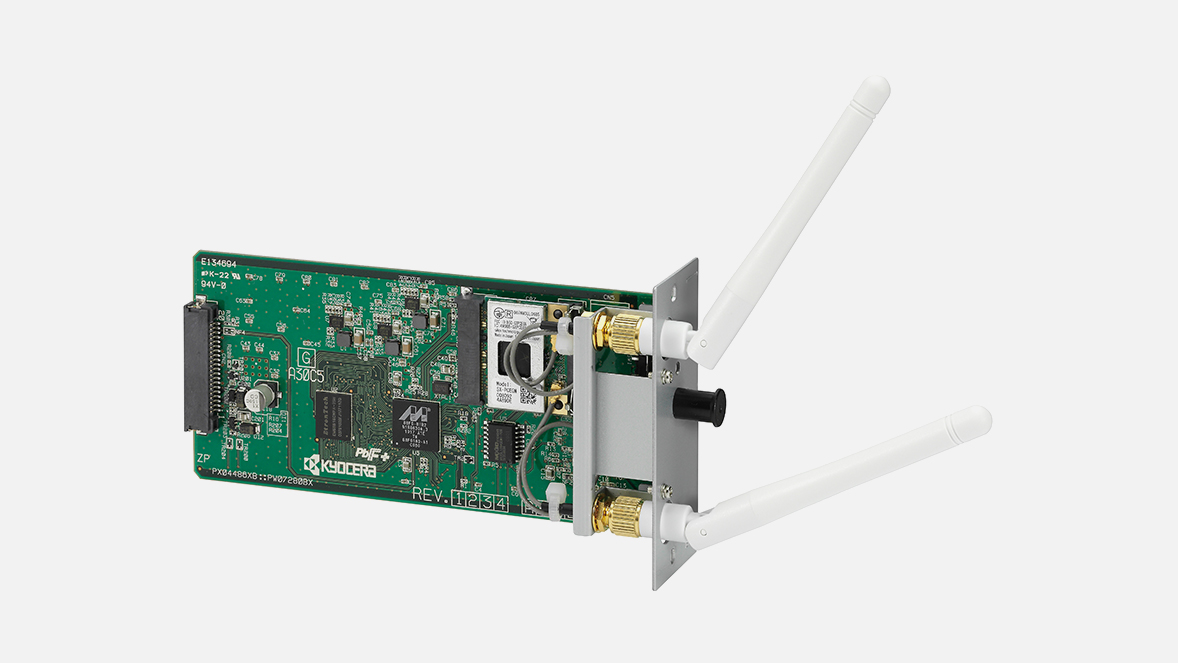

    IB-51
    Wireless LAN NIC - 328' Range

    PB-325
    Base unit

    PCL Barcode Flash 3.0
    PCL Barcode Flash Type D/E

    PT-320
    250 sheet face-up rear output tray

    SD-144-1GB (DDR3)
    Printer DIMM memory (1 GB)

    SD-144-1GB (DDR3)
    Printer DIMM memory (1 GB)

    SD-144-2GB (DDR3)
    Printer DIMM memory (2 GB)

    SD-144-2GB (DDR3)
    Printer DIMM memory (2 GB)

    Stand
    Copier cabinet stand

    UG-33
    Thin Print support

    • media-image-large-1178x663-PA5500x_right_comb01
    • media-image-large-1178x663-PA5500x_front_comb03_01
    • media-image-large-1178x663-PA5500x_left_comb01
    • media-image-large-1178x663-PA4500x-Series_panel_eng_01
    • media-image-large-1178x663-ecosys-pa-4500-x-6
    • media-image-large-1178x663-Option_HD-17_HD-18_HD-19_01
    • media-image-large-1178x663-Option_IB-37_01
    • media-image-large-1178x663-Option_IB-51_01

    Find the perfect match

    The Kyocera Configurator helps you find the right set-up for the device you’re interested in. Select available add-ons to suit your specific needs.
