    printers-540x540-ecosysP6235cdn

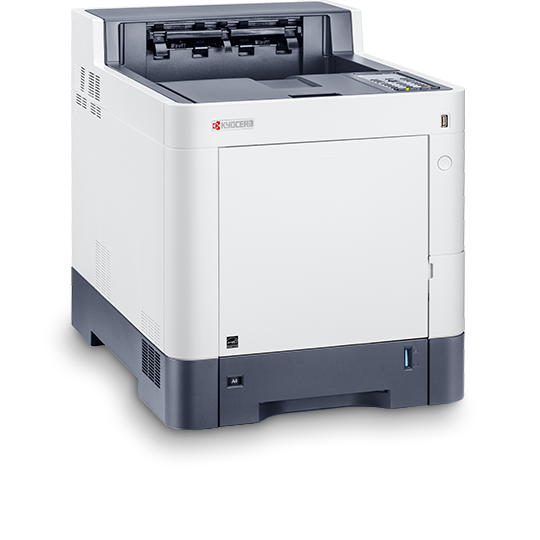

    ECOSYS P6235cdn

    The ECOSYS P6235cdn print solution with speeds up to 37 ppm, is the product of choice for small-medium sized businesses and workgroups.

    • High speeds up to 37 ppm b&w and color

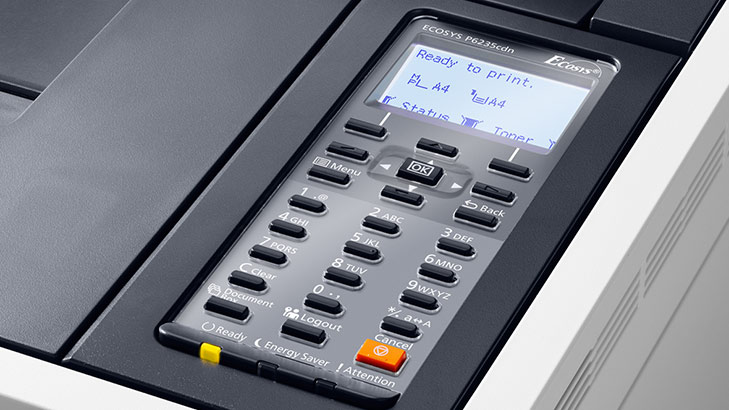

    • 5 Line LCD with Hard Key Control Panel
    • Optional Data Security Kit
    • Optional wireless, Wi-Fi Direct
    • Optional HD-6: 32 GB SSD / HD-7: 128 GB SSD
    Engine speed

    37 ppm b&w / 37 ppm color

    Resolution

    1200 dpi at half speed

    Dimensions (W x D x H)

    15.4" x 21" x 18.5"

    Time to first print

    6.5 sec. b&w / 7.5 sec. color

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • people at work

      Printing solutions to make a business run smoothly

      Highly regarded by the industry and highly rated by numerous testing organizations, Kyocera’s complete portfolio of reliable, high-value, eco-friendly network laser printers, deliver high resolution output with crisp black and white or vibrant color prints, whether they are text or graphics, for any size workgroup.

      Printing solutions to make a business run smoothly
      Printing solutions to make a business run smoothly

      With the introduction of a Kyocera printer, printing can become reliable, quick, and low cost.

    • people at work

      Powerful, reliable, and economical

      Whether on your desktop or on the floor of your office – be it in color or black and white, with Kyocera, you always achieve the best possible print quality while easily controlling your output costs. Kyocera devices and their components have been designed to be extremely reliable and highly economical.

      Powerful, reliable, and economical
      Powerful, reliable, and economical

      For a printer that can be trusted to produce the goods whenever required.

    • csr

      ECOSYS: The sustainable solution

      ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs, and significantly less waste during their lifetime.

      ECOSYS: The sustainable solution
      ECOSYS: The sustainable solution

      Unique to Kyocera, ECOSYS provides long-lasting and environmentally friendly MFPs and printers at an economical cost.

    Downloads

    • ECOSYS P6235cdn drivers
    • ECOSYS P6235cdn documentation
    • ECOSYS P6235cdn software

    Main Specifications

    General

    • General
    • Paper Handling
    • Print
    printers-540x540-ecosysP6235cdn
    General type
    A4 COLOR PRINTER (up to 8.5" x 14")
    Engine speed
    37 ppm b&w / 37 ppm color
    Warm-up time
    25 sec. or less
    Power consumption
    Printing: 120V: 513 W; 220-240V: 523; Ready: 70W, Sleep: 0.6W
    Input capacity
    Single 500 sheet tray, 100 sheet MPT

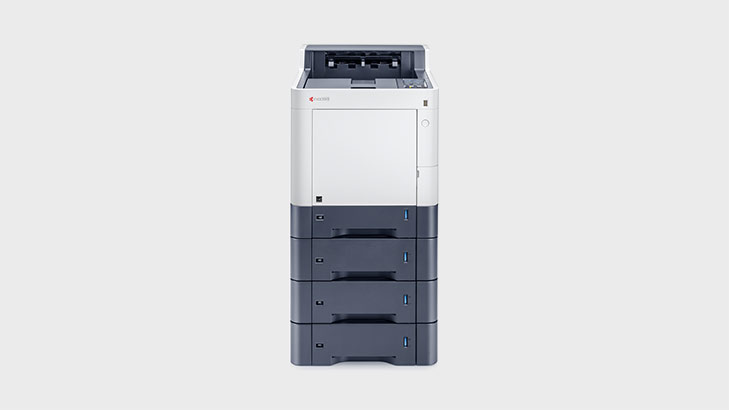

    Max. input capacity with options
    2,100 sheets
    Duplex unit
    Standard stackless duplex supports statement (5.5" x 8.5") to legal (8.5" x 14"), 16 lb Bond - 90 lb Index (60 - 163gsm)
    Max. output capacity
    Standard output tray 500 sheets
    Processor
    ARM Cortex-A9 1,200MHz
    Fonts
    93 Fonts PCL 6/KPDL3, 8 Fonts Windows/Vista, 1 Bitmap
    Applicable OS
    Windows Server 2003, Windows, Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10; Linux, Apple Macintosh OS X 10.5 or Later

    Options and Consumables

    Paper Handling Options

    • Paper Handling Options
    • Consumables
    • Options

    TK-5282C
    Cyan Toner (Yield: 11K @ ISO 19798)

    TK-5282K
    Black Toner (Yield: 13K @ ISO 19798)

    TK-5282M
    Magenta Toner (Yield: 11K @ ISO 19798)

    TK-5282Y
    Yellow Toner (Yield: 11K @ ISO 19798)

    Card Authentication Kit (B)
    Support for various proximity card readers

    Data Security Kit (E)
    Kit for hard drive encryption and overwrite

    HD-6
    SSD memory device (32 GB)

    HD-7
    SSD memory device (128 GB)

    IB-36
    Wireless LAN NIC - 98' range and Wi-Fi Direct support

    IB-50
    Gigabit ethernet board for dual NIC

    IB-51
    Wireless LAN NIC - 328' Range

    SD-144-1GB (DDR3)
    Printer DIMM memory (1 GB)

    SD-144-2GB (DDR3)
    Printer DIMM memory (2 GB)

    SDHC Card-16G
    SD Card memory for storage (16 GB)

    SDHC Card-32G
    SD Card memory for storage (32 GB)

    Stand
    Copier cabinet stand

    UG-33
    Thin Print support

    • printers-540x540-ecosysP6235cdn
    • imagegallery-1180x663-ecosysFS-P6235cdn-front
    • imagegallery-1180x663-ecosysFS-P6235cdn-toners
    • imagegallery-1180x663-ecosysFS-P6235cdn-top
    • imagegallery-1180x663-ecosysFS-P6235cdn-panel
    • imagegallery-1180x663-ecosysFS-P6235cdn-angled

    Find the perfect match

    Our Product Configurator helps you find the right set-up for the device you’re interested in. Select available add-ons to suit your specific needs.
    Set it up Set it up
