    mfp-540x540-angled-ecosysM6630cidn

    ECOSYS M6630cidn

    The ECOSYS M6630cidn copy, color scan, fax and finishing solution with speeds up to 32 ppm, is the product of choice for small-medium sized businesses and workgroups.

    • High speeds up to 32 ppm color
    • 7" color TSI - intuitive user interface
    • Optional Data Security Kit
    • Optional wireless, Wi-Fi Direct
    • Standard HyPAS capable
    • Optional HD-6: 32 GB SSD / HD-7: 128 GB SSD
    Engine speed

    32 ppm b&w / 32 ppm color

    Resolution

    1200 dpi at half speed

    Scan speed

    Up to 60 ipm simplex

    Time to first print

    6.5 sec.b&w / 7.5 sec. color

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • people at work

      Multifunctional products for day-to-day tasks

      Highly regarded by the industry and highly rated by numerous testing organizations, Kyocera boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant color, to match the needs of any business.

      Multifunctional products for day-to-day tasks
      Multifunctional products for day-to-day tasks

      Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

    • woman at desk

      A4 MFP for all needs

      Kyocera’s A4 MFPs offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacturing, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same time.

      A4 MFP for all needs
      A4 MFP for all needs

      High quality, high reliability, and high efficiency are essential.

    • csr

      Environmentally sustainable

      Our devices are known for their eco-friendly approach, following our company philosophy to "do the right thing as a human being". Beyond simply helping the environment, they can help your cost saving efforts too.

      By reducing energy usage throughout, this MFP can save you money and reduce its impact on the environment. Building greater efficiencies throughout is the easiest way to make an impact on your profits.

      Environmentally sustainable
      Environmentally sustainable

      Care for the world around you and benefit from the efficiencies achieved through being more eco-friendly.

    Downloads

    • ECOSYS M6630cidn drivers
    • ECOSYS M6630cidn documentation
    • ECOSYS M6630cidn software

    Main Specifications

    General

    • General
    • Paper handling
    • Print
    • Copy
    • Scan
    • Fax
    mfp-540x540-angled-ecosysM6630cidn
    General type
    A4 COLOR MFP (up to 8.5" x 14")
    Engine speed
    32 ppm b&w / 32 ppm color
    Warm-up time
    26 sec. or less
    Power consumption
    Printing/Cppying: 120V: 500/516 W; 220-240V: 496/521 W; Ready: 68W, Sleep: 0.6W
    Input capacity
    Single 250 sheet tray, 100 sheet MPT
    Max. input capacity with options
    1,850 sheets
    Duplex unit
    Standard stackless duplex supports statement (5.5" x 8.5") to legal (8.5" x 14"), 16 lb Bond - 90 lb Index (60 - 163gsm)
    Max. output capacity
    Standard output tray 250 sheets
    Document processor
    Standard Reversing Automatic Document Processor: 75 sheets
    Processor
    ARM Cortex-A9 1,200MHz
    Fonts
    93 Fonts PCL 6/KPDL3, 8 Fonts Windows/Vista, 1 Bitmap
    Applicable OS
    Windows Server 2003, Windows, Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10; Linux, Apple Macintosh OS X 10.5 or Later
    Max. original size
    8.5" x 14"
    Continuous copy
    1-999
    Zoom range
    25 - 400% in 1% Step Increments
    Preset magnification ratios
    Full Size, 7 Reduction, 5 Enlargement Preset Ratios
    Digital copy features
    Auto Color Select (ACS), Auto Zoom, Auto Duplex, Blank Page Skip, Continuous Scan
    Scan functionalities
    Scan to Folder SMB, Scan to Email, Scan to FTP, WSD-SCAN Send, Scan to USB, TWAIN/WIA
    Scan speed
    Up to 60 ipm simplex
    Scan resolution
    Fine 1200 dpi, 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi
    Max. scan size
    8.5" x 14"
    File type
    TIFF (Compressed MMR/JPEG), PDF (CompressedMMR/JPEG), XPS, JPEG, PDF (Highly Compressed), PDF/A-1
    Compatibility
    G3 Fax
    Modem speed
    33.6 Kbps
    Max. original size
    8.5" x 14"
    Fax features
    Duplex Transmission/Reception, Density Adjustment, Original Image Quality, Continuous Scan, Zoom In/Out, Timer Send, Direct Send, Polling Receive, Mixed Originals (Same Width)

    Options and Consumables

    Paper Handling Options

    • Paper Handling Options
    • Consumables
    • Options

    TK-5272C
    Cyan Toner (Yield: 6K @ ISO 19798)

    TK-5272K
    Black Toner (Yield: 8K @ ISO 19798)

    TK-5272M
    Magenta Toner (Yield: 6K @ ISO 19798)

    TK-5272Y
    Yellow Toner (Yield: 6K @ ISO 19798)

    Card Authentication Kit (B)
    Support for various proximity card readers

    Card Reader Holder 10
    Tray for proximity card reader

    Data Security Kit (E)
    Kit for hard drive encryption and overwrite

    HD-6
    SSD memory device (32 GB)

    HD-7
    SSD memory device (128 GB)

    IB-36
    Wireless LAN NIC - 98' range and Wi-Fi Direct support

    IB-50
    Gigabit ethernet board for dual NIC

    IB-51
    Wireless LAN NIC - 328' Range

    MS-5100
    Manual stapler

    SD-144-1GB (DDR3)
    Printer DIMM memory (1 GB)

    SD-144-2GB (DDR3)
    Printer DIMM memory (2 GB)

    SDHC Card-16G
    SD Card memory for storage (16 GB)

    SDHC Card-32G
    SD Card memory for storage (32 GB)

    SH-13
    Staple cartridge

    Scan Extension Kit (A)
    Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx)

    Stand
    Copier cabinet stand

    UG-33
    Thin Print support

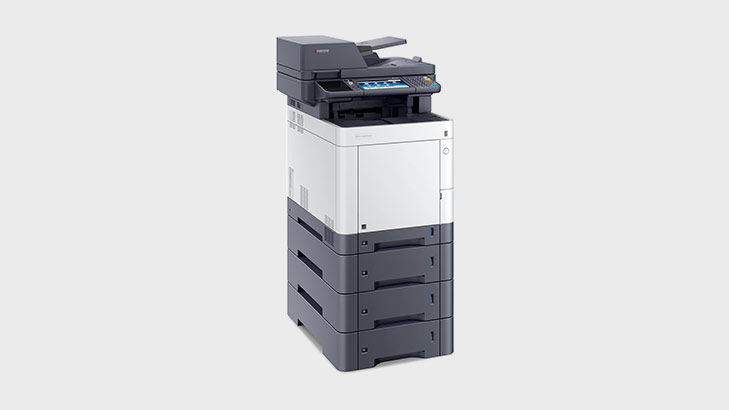

    • imagegallery-1180x663-ECOSYS-M6630cidn-angle

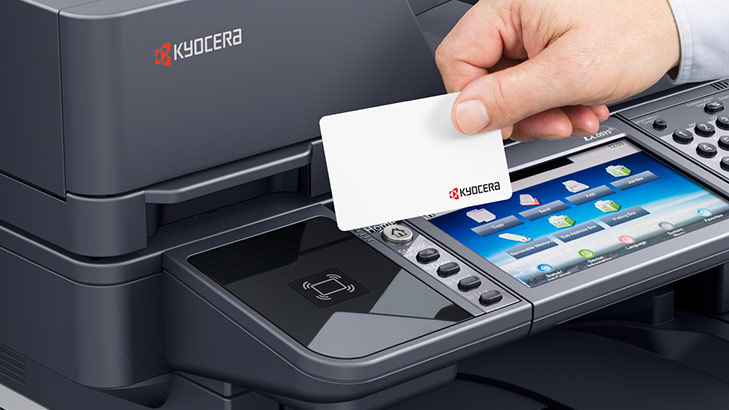

    • imagegallery-1180x663-ECOSYS-M6630cidn-cards

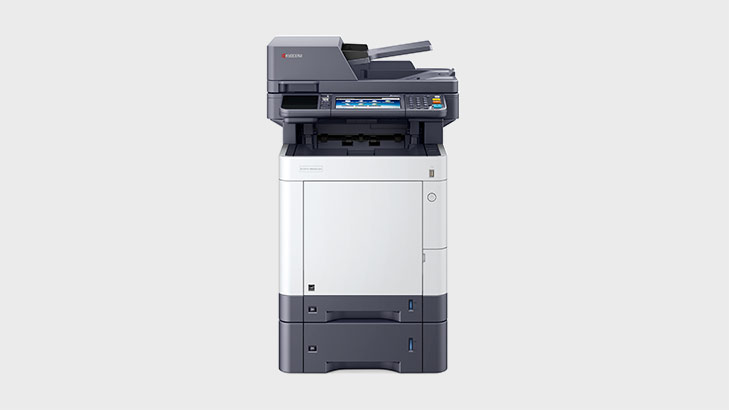

    • imagegallery-1180x663-ECOSYS-M6630cidn-front

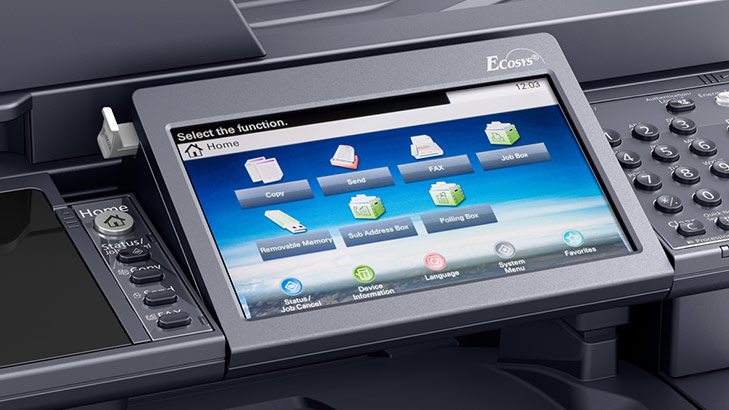

    • imagegallery-1180x663-ECOSYS-M6630cidn-panel

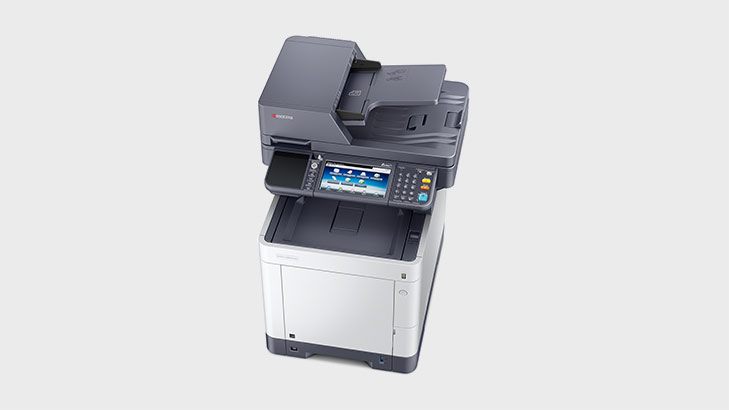

    • imagegallery-1180x663-ECOSYS-M6630cidn-top
