    ECOSYS M5521cdw

    The ECOSYS M5521cdw is a versatile color network MFP designed for small workgroups and individual users that seek maximum productivity, reliability and affordability.

    • Up to 22 ppm b&w / 22 ppm color

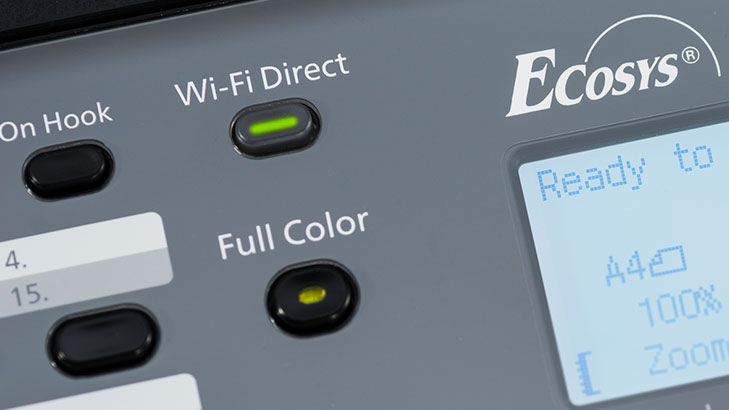

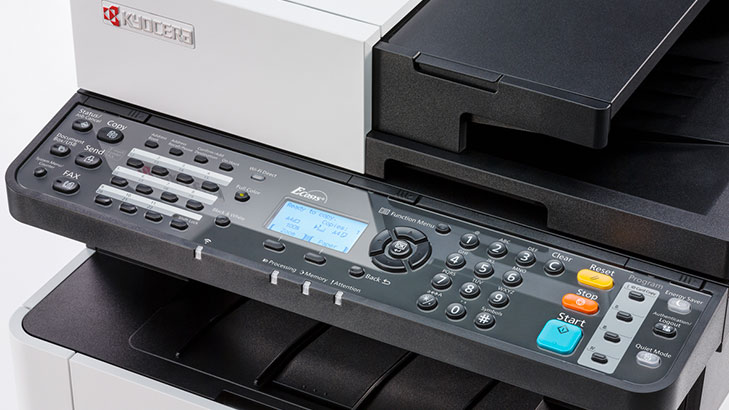

    • 5 Line LCD with Hard Key Control Panel
    • High quality output at 1200 x 1200 dpi
    • Standard wireless and Wi-Fi Direct
    Engine speed

    22 ppm b&w / 22 ppm color

    Resolution

    1200 dpi at half speed

    Scan speed

    Up to 30 ipm simplex

    Time to first print

    11 sec. b&w / 12.5 sec. color

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • Multifunctional products for day-to-day tasks

      Multifunctional products for day-to-day tasks

      Highly regarded by the industry and highly rated by numerous testing organizations, Kyocera boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant color, to match the needs of any business.

      Multifunctional products for day-to-day tasks
      Multifunctional products for day-to-day tasks

      Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

    • Powerful, reliable, and economical

      Powerful, reliable, and economical

      Whether on your desktop or on the floor of your office – be it in color or black and white, with Kyocera, you always achieve the best possible print quality while easily controlling your output costs. Kyocera devices and their components have been designed to be extremely reliable and highly economical.

      Powerful, reliable, and economical
      Powerful, reliable, and economical

      For an MFP that can be trusted to produce the goods whenever required.

    • Environmentally sustainable

      Environmentally sustainable

      Our devices are known for their eco-friendly approach, following our company philosophy to "do the right thing as a human being". Beyond simply helping the environment, they can help your cost saving efforts too.

      By reducing energy usage throughout, this MFP can save you money and reduce its impact on the environment. Building greater efficiencies throughout is the easiest way to make an impact on your profits.

      Environmentally sustainable
      Environmentally sustainable

      Care for the world around you and benefit from the efficiencies achieved through being more eco-friendly.

    Resources

    Explore some of the common functions, features and questions via short videos and more.

    • Video Library

      Video Library

      Watch short educational videos that will help walk you through the features and functionalities.

    • Frequently Asked Questions

      Frequently Asked Questions

      Answers to common troubleshooting situations and installation instructions for related software.

    Downloads

    • ECOSYS M5521cdw drivers
    • ECOSYS M5521cdw documentation
    • ECOSYS M5521cdw software

    Main Specifications

    General

    • General
    • Paper handling
    • Print
    • Copy
    • Scan
    • Fax
    mfp-540x540-angled-ecosysM5521cdw_WITH-GESTURE
    General type
    A4 COLOR MFP (up to 8.5" x 14")
    Engine speed
    22 ppm b&w / 22 ppm color
    Warm-up time
    32 sec. or less
    Power consumption
    Printing/Copying: 120V: 345 W; 220-240V: 345 W; Ready: 41W, Sleep: 1W
    Input capacity
    Single 250 sheet tray, 50 sheet MPT
    Max. input capacity with options
    550 sheets
    Duplex unit
    Standard stackless duplex supports statement (5.5" x 8.5") to legal (8.5" x 14"), 16 lb Bond - 90 lb Index (60 - 163gsm)
    Max. output capacity
    Standard output tray 150 sheets
    Document processor
    Automatic Document Processor: 50 sheets
    Processor
    Cortex-A9 800MHz
    Fonts
    93 Fonts PCL 6/KPDL3, 8 Fonts Windows/Vista, 1 Bitmap
    Applicable OS
    Windows Server 2003, Windows, Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10; Linux, Apple Macintosh OS X 10.5 or Later
    Max. original size
    8.5" x 14"
    Continuous copy
    1-999
    Zoom range
    25 - 400% in 1% Step Increments
    Preset magnification ratios
    Full Size, 7 Reduction, 5 Enlargement Preset Ratios
    Digital copy features
    Auto Color Select (ACS), Auto Zoom, Auto Duplex, Blank Page Skip, Continuous Scan
    Scan functionalities
    Scan to Folder SMB, Scan to Email, Scan to FTP, WSD-SCAN Send, Scan to USB, TWAIN/WIA
    Scan speed
    Up to 30 ipm simplex
    Scan resolution
    1200 x 1200 dpi (Half Speed), 600 x 600 dpi, 9600 x 600 dpi
    Max. scan size
    8.5" x 14"
    File type
    TIFF (Compressed MMR/JPEG), PDF (CompressedMMR/JPEG), XPS, JPEG, PDF (Highly Compressed), PDF/A-1
    Compatibility
    G3 Fax
    Modem speed
    33.6 Kbps
    Max. original size
    8.5" x 14"
    Fax features
    Duplex Transmission/Reception, Density Adjustment, Original Image Quality, Continuous Scan, Zoom In/Out, Timer Send, Direct Send, Polling Receive, Mixed Originals (Same Width)

    Options and Consumables

    Paper Handling Options

    • Paper Handling Options
    • Consumables
    • Options

    TK-5222C
    Cyan Toner (Yield: 1.2K @ ISO 19798)

    TK-5222K
    Black Toner (Yield: 1.2K @ ISO 19798)

    TK-5222M
    Magenta Toner (Yield: 1.2K @ ISO 19798)

    TK-5222Y
    Yellow Toner (Yield: 1.2K @ ISO 19798)

    TK-5232C
    High Capacity Cyan Toner (Yield: 2.2K @ ISO 19798)

    TK-5232K
    High Capacity Black Toner (Yield: 2.6K @ ISO 19798)

    TK-5232M
    High Capacity Magenta Toner (Yield: 2.2K @ ISO 19798)

    TK-5232Y
    High Capacity Yellow Toner (Yield: 2.2K @ ISO 19798)

    Card Authentication Kit (B)
    Support for various proximity card readers

    SD-1GB
    Printer DIMM memory (1 GB)

    SD-512MB
    Printer DIMM memory (512 MB)

    SDHC Card-16G
    SD Card memory for storage (16 GB)

    SDHC Card-32G
    SD Card memory for storage (32 GB)

    UG-33
    Thin Print support
